General Low Voltage Overview
General Low Voltage: Refers to any electrical system operating at or below 50 Volts (most commonly 12V or 24V DC/AC). Unlike standard 120V household outlets that carry severe shock risks and require rigid metal conduits, low voltage systems operate at power levels safe to touch.
Common Uses: Smart thermostats, doorbells, Ethernet/PoE cabling, indoor LED strips, and audio/intercom wiring.
Low Voltage Landscape Lighting (Outdoor System): A specialized system that converts standard 120V household electricity from an outdoor GFCI outlet into 12V (or 15V) using a weather-resistant step-down transformer.
Key Benefits:
- Safety: A severed wire from a shovel or lawnmower won't cause a dangerous shock or fire hazard.
- Easy Installation: Wires only need to be buried 3 to 6 inches underground (under mulch or soil) compared to 18+ inches for 120V line voltage.
- Efficiency: Allows dozens of outdoor fixtures to run off a single transformer.
Comparison Summary
Feature | General Low Voltage | Low Voltage Landscape Lighting |
|---|---|---|
Electrical Scope | Any system ≤ 50V | Specific outdoor 12V lighting setup |
Typical Voltage | 5V, 12V, 24V (AC/DC) | 12V to 15V AC (or DC for specific LEDs) |
Primary Location | Indoors & outdoors (HVAC, AV, data) | Outdoor yards, garden beds, pathways |
Core Hardware | Drivers, power supplies, Ethernet | Step-down transformer & direct-burial cable |
Modern LED Equivalents & Retrofitting
LEDs are now the universal standard for landscape lighting, replacing older halogen systems.
- Massive Energy Savings: A halogen spotlight draws 20W–50W, while an equivalent LED spotlight uses only 3W–7W (an ~80–85% power reduction).
- Longer Lifespan: Halogens last ~2,000 hours (1–2 years), whereas pro-grade LEDs last 25,000–50,000 hours (10 to 15+ years).
- Cooler Operation: LEDs generate minimal heat, protecting plants and mulch from scorching.
- Retrofitting Existing Halogens: You can easily swap halogen bulbs (MR16, G4, GU10) for 12V drop-in LED replacements without replacing wires or fixtures. (Note: If flickering occurs, the old magnetic transformer may need an LED-compatible upgrade).
Top Brands for Reliability, Construction & Lifespan
For long-term outdoor durability, material selection is critical. Always choose solid cast brass or sand-cast bronze over powder-coated aluminum, as aluminum will eventually pit, peel, and oxidize when exposed to soil acidity and lawn chemicals.
Professional "Gold Standard" Brands
- CAST Lighting (Sand-Cast Bronze): Indestructible construction. Bronze forms a protective natural patina without flaking or degrading. Best for coastal/saltwater areas and maximum durability.
- FX Luminaire - Hunter Industries (Brass & Copper): The industry leader in smart landscape lighting. Offers advanced app control, individual fixture zoning, dimming, and RGBW color-tuning via their Luxor system.
- Unique Lighting Systems (Cast Brass): Known for proprietary moisture-proof wire connection systems that prevent water intrusion (the #1 cause of fixture failure). Features lifetime warranties on brass lines.
- Kichler - Design Pro Series (Cast Brass): Exceptional optical engineering, tight beam control, and consistent color temperature across fixtures.
Top Direct-to-Consumer Brand
- VOLT Lighting (Solid Cast Brass): Delivers professional-grade solid brass hardware, silicone O-ring seals, heavy-duty ground stakes, and a lifetime warranty directly to homeowners at accessible price points. (Note: "VOLT Lighting" should not be confused with "Vault Light", which is an indoor modern decorative light retailer).
Brand Comparison Matrix
Brand | Material | Tech / Control | Warranty | Best For |
|---|---|---|---|---|
CAST Lighting | Sand-Cast Bronze | Standard / Dimmable | Lifetime | Max durability & coastal homes |
FX Luminaire | Solid Brass / Copper | Advanced Smart App / Zoning | 10-Yr to Lifetime | High-end smart home designs |
Unique Lighting | Cast Brass | Standard / Zoned | Lifetime | Harsh weather & high moisture |
Kichler (Pro) | Cast Brass / Alum. | Standard / Smart options | 10-Yr to Lifetime | Traditional aesthetics & clean optics |
VOLT Lighting | Solid Cast Brass | Basic Smart / Standard | Lifetime | DIYers wanting pro-grade brass |
Landscape Lighting Terminology
Fixture Types
- Luminaire: The complete lighting unit, including the housing and the bulb.
- Spotlight: A narrow, focused beam used to highlight a specific plant or feature.
- Floodlight: A wide, bright beam used to cover large areas or add security.
- Well Light: A fixture buried flush with the ground to shine light upward.
- Path Light: A short post light that points down to guide you safely along walks.
Lighting Techniques

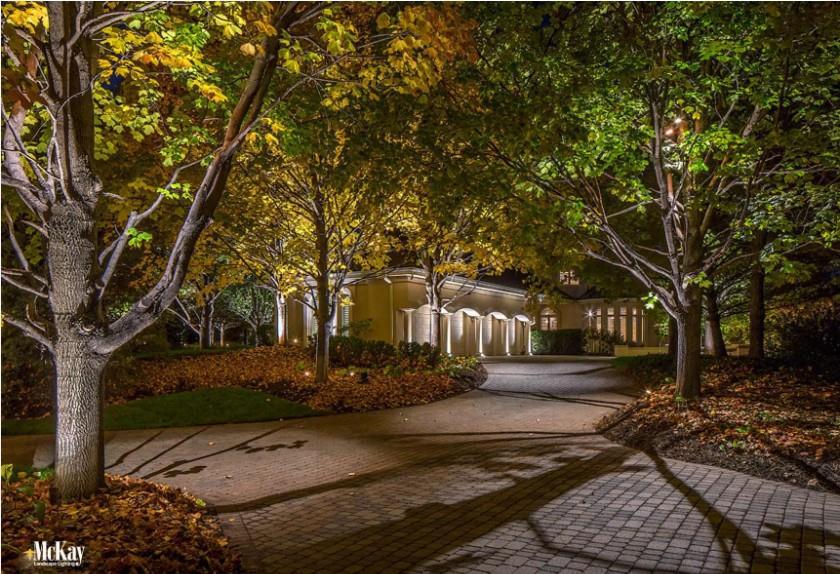

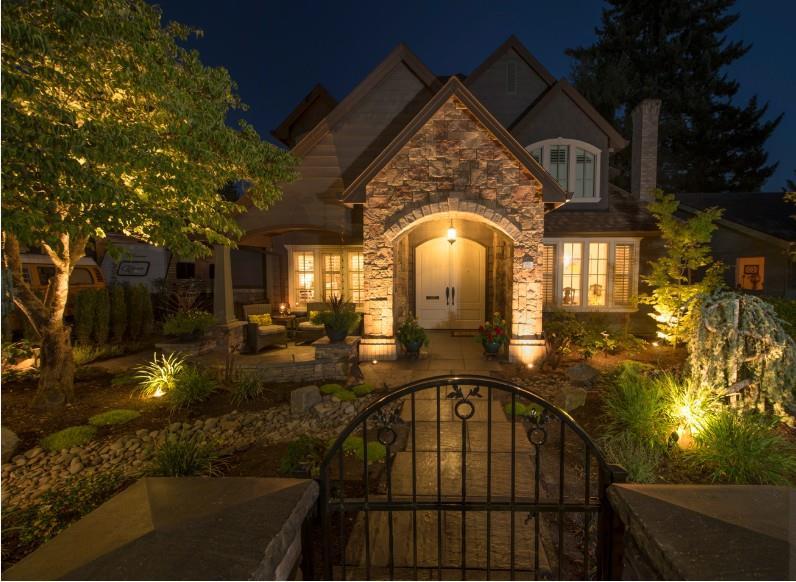

- Uplighting: Placing a light at the base of a tree or wall to point upward.
- Downlighting: Placing a light high up—like in a tree or under a roof—to shine downward.
- Moonlighting: A type of downlighting high in a tree that makes soft light filter through leaves like the moon.

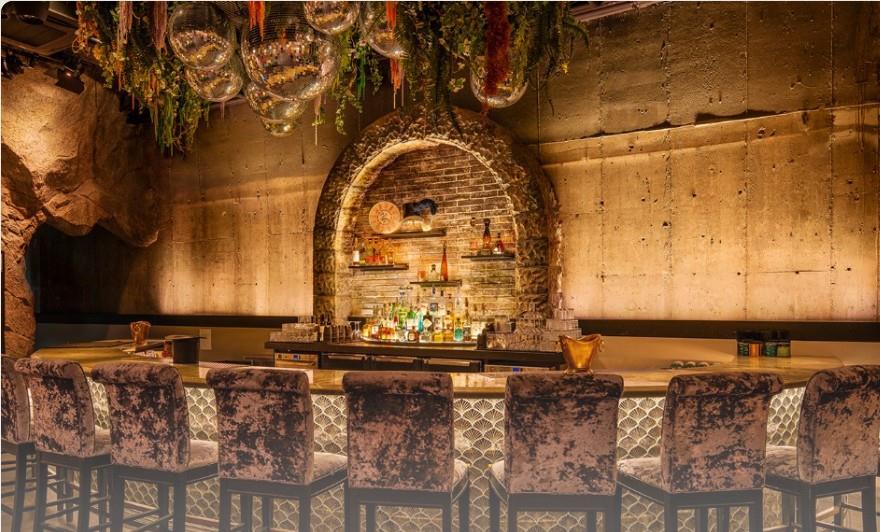

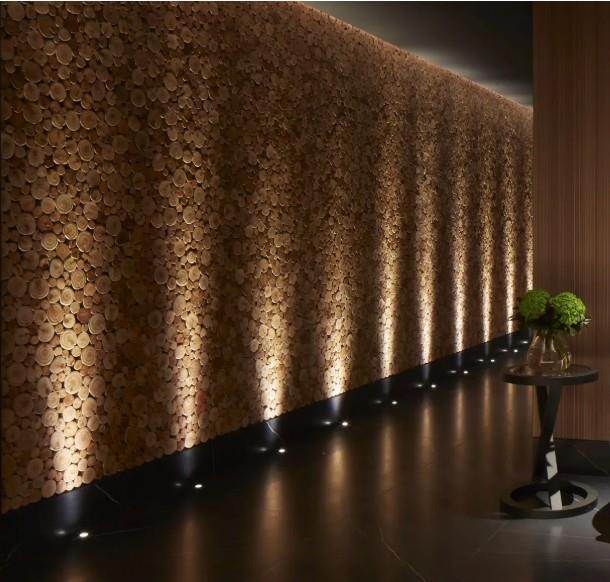

- Grazing: Placing a light close to a textured wall to show off stone or brick.
- Silhouetting: Placing a light behind an object to show its dark outline.
