Panoramic Doors

Panoramic Doors are a great way to bring the outdoors in and the indoors out. They have definitely improved over the years and the options are better as well. Obviously, it is easy to incorporate these into new construction, but don’t be afraid to incorporate them into your remodeling project. If you have a wall, then you can have one of the many versions to expand your single or double door that exists today.

When thinking about Panoramic doors there are 2-3 basic styles which will affect your final decision. If you have unlimited space you need to think about where the doors will slide into or in front of when they are open. Typical each door section is 5’ wide so if they slide into a pocket, you will need 6-7 feet on one side of your door space for the pocket. An alternative option are doors that stack as you slide them aside or stack and swivel against a wall. This does not require the pocket for the doors to slide into, but you still need the space to stack the doors along one side. Aesthetically, the pocket option is the best, but the stacking option can look very nice as well, especially the swivel and stack style.

Planning is Key!

The use of a large scenic doors is a rising trend, especially in homes with sufficient square footage. These doors can flood the living space with large amounts of natural light, providing an uplifting experience while spending time in the kitchen and living areas. The natural light generated from scenic doors increases the value of the home, and even provides additional health benefits to the homeowner.

Scenic doors provide an environment with the feel of no walls, and no boundaries. All that separates homeowner from the outdoors is a simple layer of glass, and when it’s open the home is filled with fresh outdoor air.

It’s important to consider the necessary steps for a proper scenic door installation, however. That begins with making sure that you hire an experienced professional installation and engineering company.

It takes a lot to go from a standard door to one that may be as large as 15 feet wide, and 8 feet tall, for example. Architects, builders, engineers, and homeowners need to understand the process, and have proper expectations for the project to be a success. Here’s five tips for scenic door upgrades:

1-When to Bring in the Engineer

It’s important to understand that creating a door of that magnitude will reduce the structural capacity of the building. When you remove the building materials of the exterior walls and replace it with glass, it’s important to involve an engineer as soon as possible, to think about how to redistribute that load in a proper manner.

The larger the opening, the more significant the redistribution that will need to take place. Once you have the size of the opening determined, and what the door will look like, it’s time to start asking the engineer how the building can be strengthened to accommodate that opening – and that’s a conversation that should take place at the onset of the project.

2-Determining the Best Scenic Door Design for Your Home

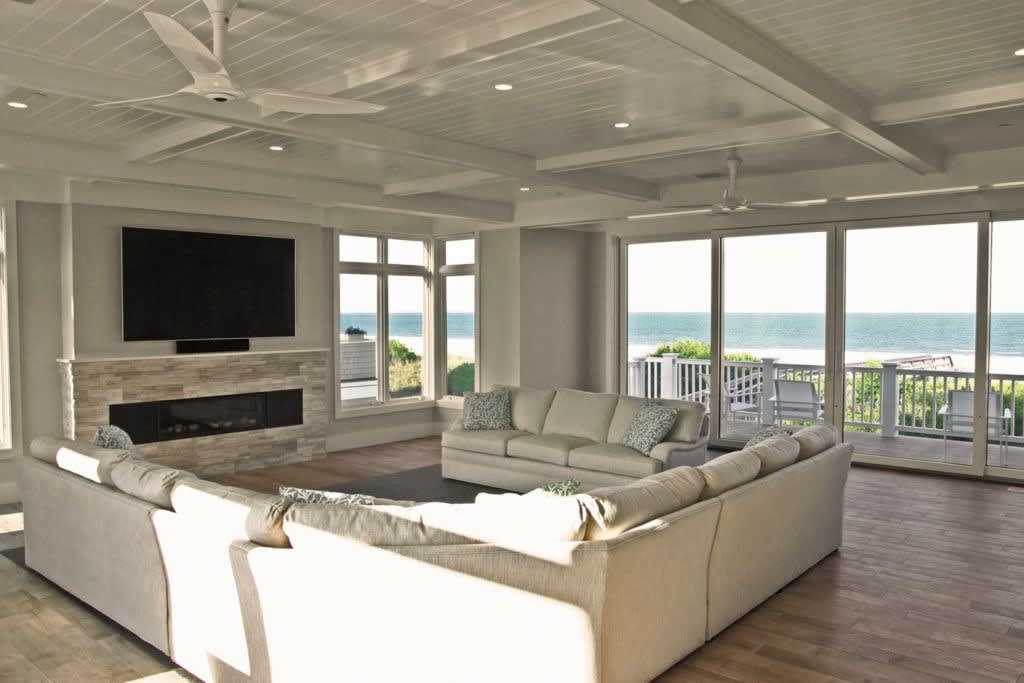

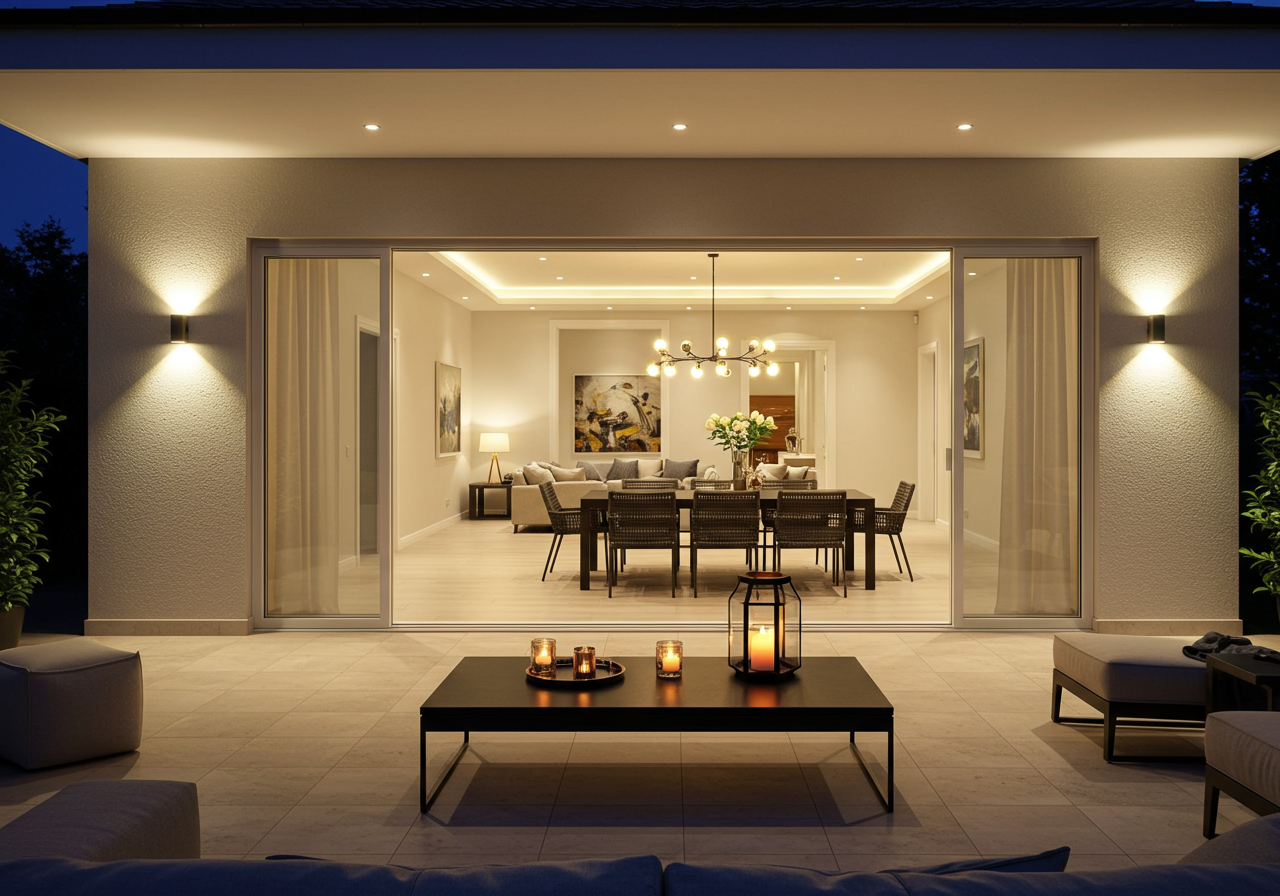

Homeowners have a choice between large sliding doors and bi-folding doors. Window and door companies, like Marvin, have a number of large scenic door options.  When you have a beautiful view right outside your home, the tendency is to want to hide the door, so that you can keep more of the view. Pocketing doors become popular in these homes, for that reason.

There are a few considerations to think of here. If you have a sliding door with no pocket, it’s important to make sure you have the space for the window to stack up against the wall. That can be a 10 to 12-inch sacrifice and can cut down on interior space.

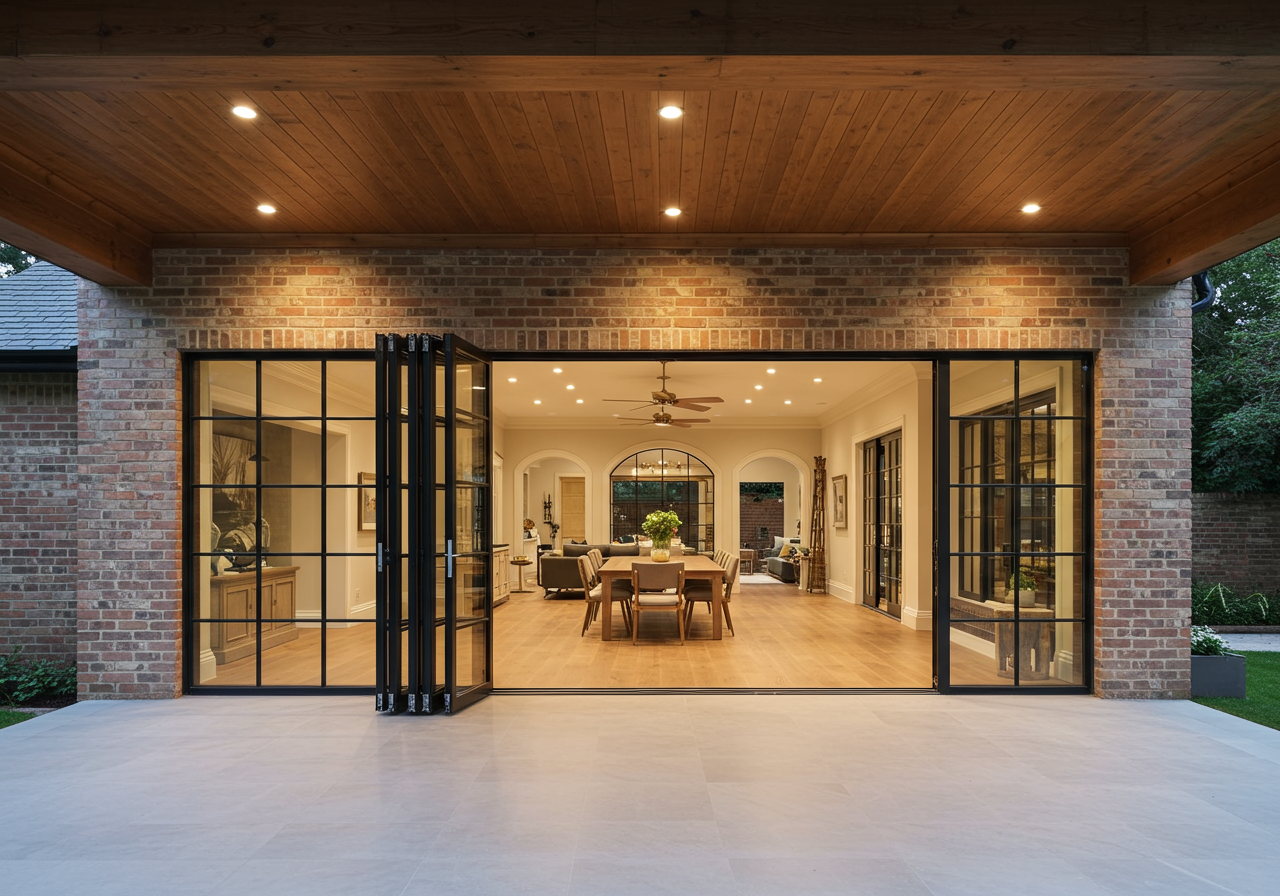

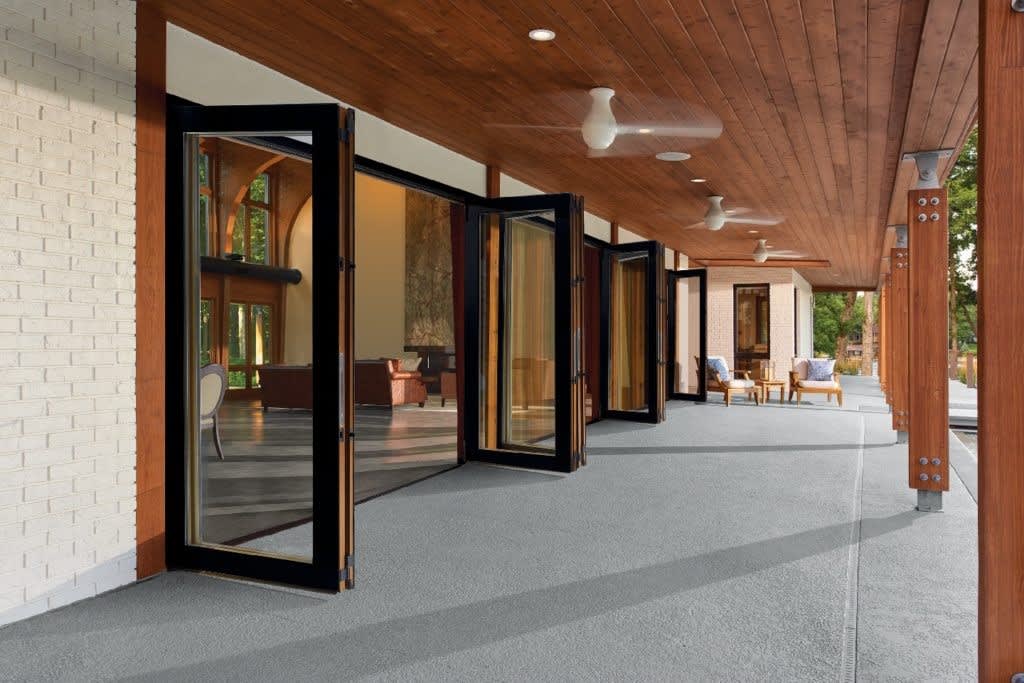

This is when a bi-fold door might become a more accommodating option. Bi-fold doors will stack outside, so there needs to be enough room there. Another thing to consider is that bi-fold doors are top hung, and weighted at the top. They typically have a pretty substantial head jamb, that may shorten the height of the door. Sliding doors are bottom weighted, so you can avoid that problem.

3-Constructibility (Making Sure It’s Feasible)

The constructability, or feasibility of a scenic door depends on the unique environment of the home. There are some important considerations to make to determine if a sliding glass door is an appropriate addition to your home.

Bi-fold doors typically work with a 2×6 wall, and the header needs to be designed to carry roughly 7 pounds per square foot on the weight of the door, with a maximum 1/8 inch of deflection. That deflection becomes the enemy of the bi-fold door system, and will eventually cause problems. It’s important to make sure the additional load on the header is taken into consideration.

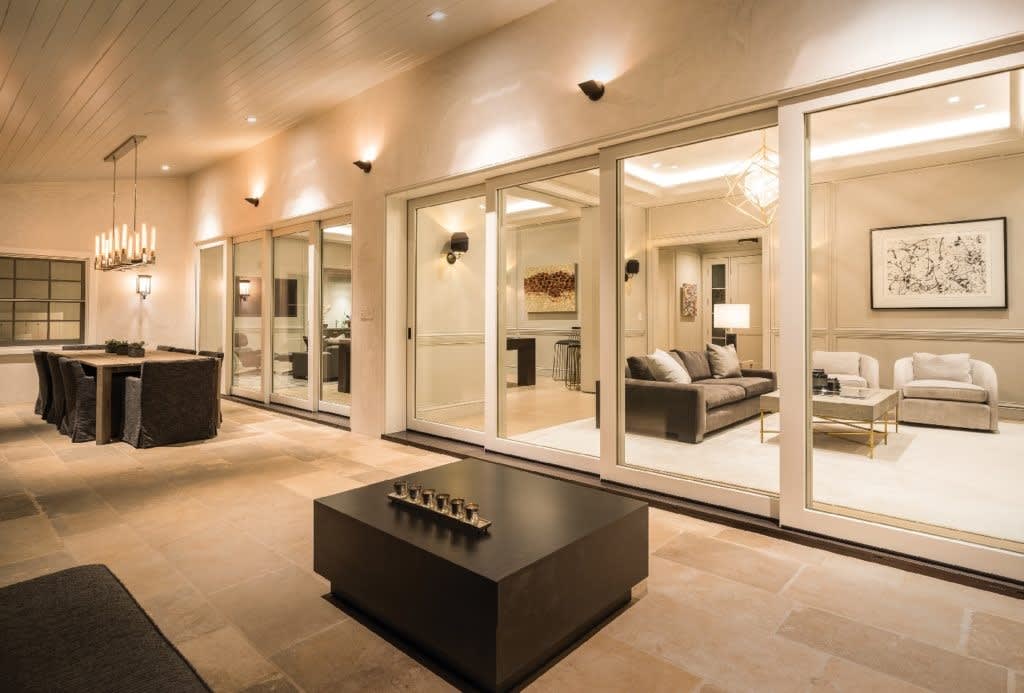

The sliding glass door systems become continuously deeper as you add panels. It’s not uncommon to see jambs that reach 12-13 inches deep. If they are pocketing systems, you’ll need to add the thickness of the anterior pocketing wall into that dimension.

4-Engineering – The Structural Considerations that Need to Be Made

Some considerations need to be made as you choose between a sliding glass door or a bi-fold system. The load of the door can reach anywhere from 400 to 600 pounds in some cases, and with the bottom load of the sliding door, there’s a need to put locking inside to carry that weight. With a top-weighted bi-fold, the jamb will be larger to carry the load.

There are also structural considerations with automation, and with screens. With automation, many times homeowners will want to conceal the motor, so that it doesn’t obstruct the view from the window. But that motor needs to remain in a position where it is still serviceable should maintenance be needed. With screens, stacking needs to be considered, and the ability to lay a seamless transition. Most homeowners are not going to want a sill that needs to be stepped over in order to go inside or outside.

 5-Understanding the Role of the Builder

Builders are becoming more involved in the scenic door process, and they field many of the above questions. Builders should be involved as close to the beginning of the project as possible, so that everyone involved in the project can be on the same page.

The builder’s general knowledge of the products involved is always immensely helpful. They need to have a general ability to think outside the box and to work with the engineer to implement the solutions to structural problems. When builders bring a strong attention to detail, it helps with the outcome of the project.

Scenic Doors Enhance the Home

There is no question that scenic doors add to the value of the home, and enhance the homeowner’s living experience. They are a luxurious option that allows for a maximum level of natural light. But these tips should be taken into consideration for any scenic door project to ensure the quality of the installation, and that the homeowner can appreciate their new door for years to come.
